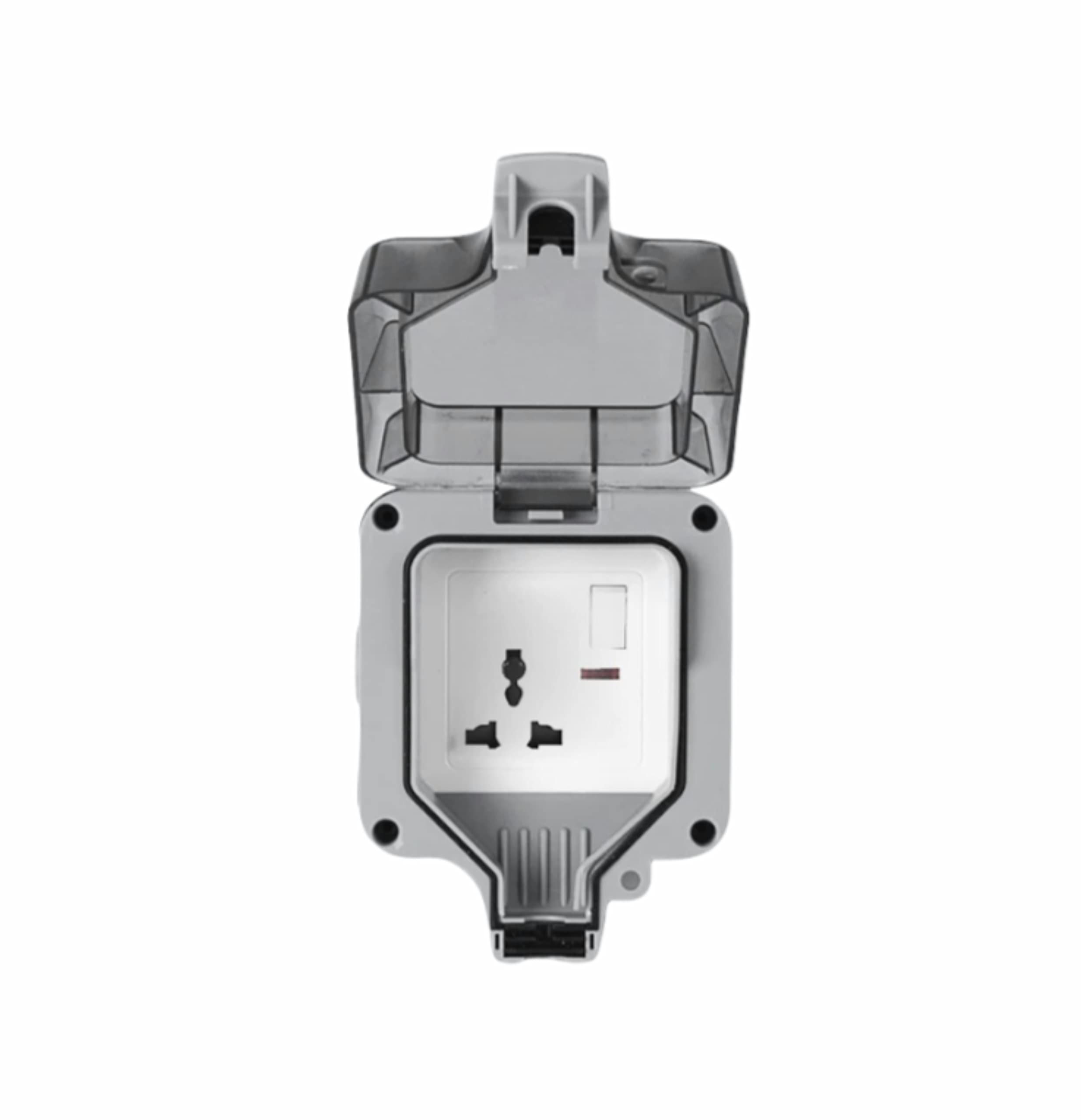

Plexo™️ - Socket outlet 66 - 1 gang switched - opaque lid - 13 A 250 V~ - Grey legrand

The Legrand Plexo™ Socket Outlet 66 (Ref. 684622) is a premium weatherproof 1-gang switched socket outlet engineered for use in demanding indoor and outdoor locations where moisture, dust, and physical impact are daily realities.

Rated IP66 and IK08, the Plexo 66 is a complete surface-mounting unit supplied with ISO 20 membrane glands and caps for rear cabling, with stainless steel captive terminal screws supplied in backed-off position. The opaque hinged lid keeps the socket securely sealed when not in use, while the integrated switch provides safe, convenient on/off control directly at the outlet — no separate isolator required.

Built from halogen-free thermoplastic with a smart industrial grey finish (RAL 7016), this socket is equally at home on a factory wall, an outdoor terrace, a plant room, or a construction site — and it installs just as cleanly in a commercial kitchen, workshop, or marine environment.

• IP66 rated — fully protected against powerful water jets and complete dust ingress
• IK08 rated — withstands impacts up to 5 Joules; resistant to accidental knocks
• 1 gang switched — integrated on/off switch for safe and convenient socket isolation
• Opaque hinged lid — seals the socket when not in use, maintains weatherproof integrity
• British Standard socket — 13A 2P+E flat pin configuration, UAE/GCC compliant
• Surface mounting — quick, direct wall installation with screw fixing
• ISO 20 membrane glands & caps included for rear cable entry; plastic cable glands required for top/bottom entry
• Stainless steel captive terminal screws — supplied in backed-off position for fast termination
• Loop-through function — supports daisy-chain wiring between multiple outlets
• Rear gasket with groove — supports silicone sealing for enhanced IP performance
• Halogen-free thermoplastic — safer for enclosed and ventilated environments
• Operating temperature range: −20°C to +40°C
• Cable section: 2.5mm² (flexible or rigid)
• Dimensions: 98 × 98 × 87mm
• RoHS compliant | REACH compliant | CB/OC certified
